Features:





1.6 W/mk Thermal Conductivity
High conformability and cost effective
Excellent electrically insulating mounted applications



Applications:



Between high power component (such as MOSFET) and a heatsink for screw and clip mounted application

DC/AC Inverter, Power Supply
Photovoltaic Power System



TYPICAL PROPERTIES OF TCI160(F)
PROPERTY	METRIC VALUE	METRIC VALUE	TEST METHOD
Color	Pink	Black	Visual
Thickness (mm)	0.229;0.30;0.45	0.20~0.80	----
Carrier	Fiberglass	without fiberglass	----
Hardness (Shore A)	80	80	ASTM D2240
Tensile Strength (Kg/cm2)	60	60	ASTM D412
Continuous Use Temp (℃)	-40 ~ 200	-40 ~ 200	EN344
ELECTRICAL
Breakdown Voltage (Vac)	≥4800	≥5000	ASTM D149
Dielectric Constant (60 Hz)	3.6	6.6	ASTM D150
Dielectric Constant (1000 Hz)	3.6	6.6
Dielectric Constant (1M Hz)	3.5	6.6
Volume Impedance (ohm-cm)	1 x107	1.2x107	ASTM D257
THERMAL
Thermal Conductivity (W/m.k)	1.6	1.6	ASTM D5470





Roll sizes:

Standard Roll Form: width: 300mm, length: 50m or 76m; TO-220.TO-3P; TO-220A,TO-3PA

TO-220.TO-3P; TO-220A,TO-3PA, Custom Thermal Conductive Cap Available

Custom Die-cut parts available

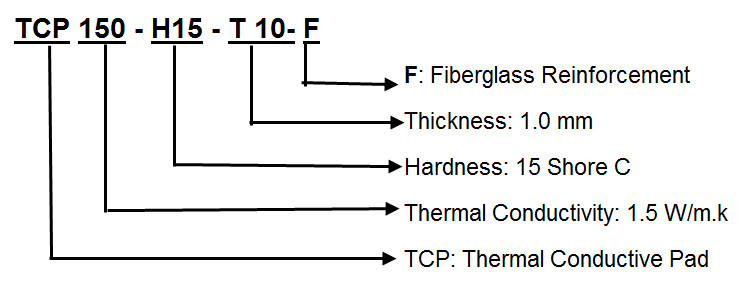

Part No. Code:





Suffix: Different Options For thermal Pad as below



“A1” suffix: One side additional adhesive such as 3M 467, 3M9448

“A2” suffix: Two sides additional adhesive such as 3M 467, 3M9448

“NA” suffix: Natural tacky

"D" suffix: one side tacky and non-tacky on the other side

"M" suffix: Fiberglass reinforcement in the middle layer

"F" suffix: Fiberglass reinforcement on top or bottom layer

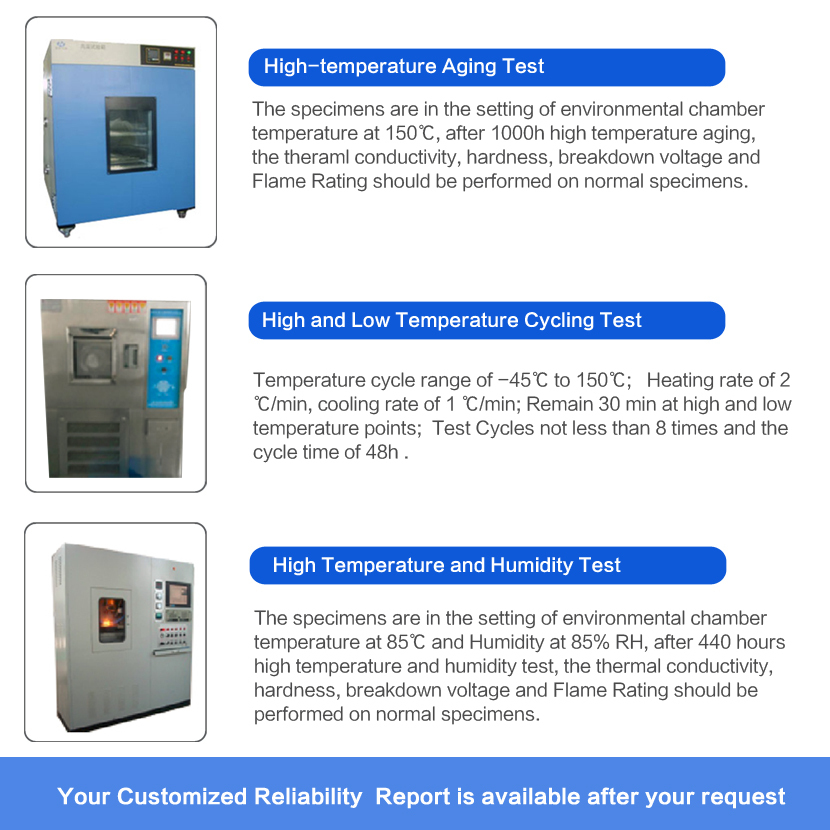

Check List of Reliability Test Report for TCI160 is available after your request







Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.
