thermal interface materials application Remove air gaps between hot devices and cold wall or heat sink

SinoGuide always strive to be a leading manufacturer in the thermal interface materials  industry. Our thermal material products are capable of close conformity to irregular surface. They are easy to use and remove. Excellent cost performance and high thermal conductivity

Air is a very poor thermal conductor and restricts the flow of heat from the heat generating component to the heat sinks. In order to get the best performance of the heat sink, as well as to keep the operating temperature of the component to a minimum, the air must be filled with Thermal Interface Materials(TIMs),which are the most compressible and highly conformable thermal fillers. As a result of its compressibility and ability to accommodate loose flatness tolerances, SinoGuide TIMs minimize the extreme stresses to components and eliminate the air-gaps to reduce the thermal resistance, as well as high conformability reduces interfacial resistance!

See Figures 1 at the left for a representation of the features referenced. Consult us for more suggestion about your thermal projects.

Quote Now

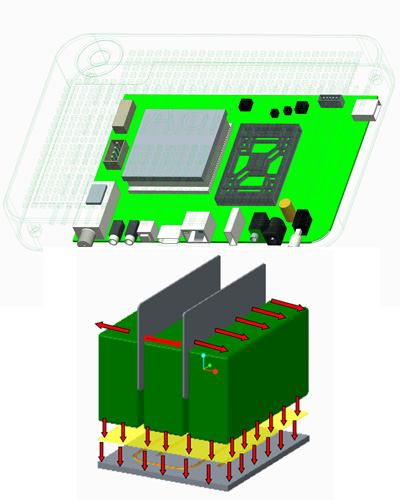

 Illustration of thermal conduction


The TCP Series Thermal Pad



The TCP series is yet another of SinoGuide’s enhanced thermal gap-filling materials that provides extreme thermal conductivity and thus unparalleled thermal interface resistance for board level multiple component thermal management. It is designed to provide conformability and compressibility to bridge the thermal gap of large boards and sensitive components. It is non-phase changing and will not contaminate components.








Typical Properties of Thermal Conductive Pad
Properties Units TCP100 TCP150 TCP200 TCP300 TCP450 TCP600 TCP750 TCP110U Test Method
Color --- Gray Black Dark Gray Blue Pink~Violet Light Blue Violet pink/white Visual
Reinforcement Carrier --- Fiberglass ---
Thickness Range mm 0.25~15 0.25~15 0.25~15 0.25~15 0.25~15 0.3~10 1.0~10 0.5~10 ---

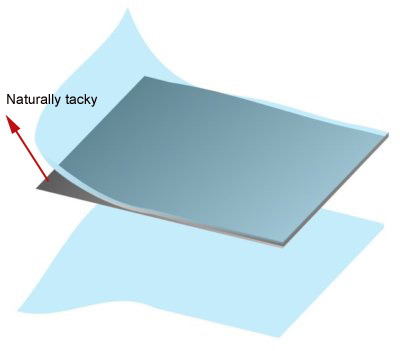

natural tacky (1- or 2-sided) --- 2 2 2 2 2 2 2 1 ---
Hardness Shore C 25,35 15,25,35 15,25,35 25,35 30 30 50 5, 15 ASTM D2240
Density g/cc 1.8 2.2 2.4 2.6 3 3.6 3.8 2.0  ASTM D792
Continuous Use Temp -40 to 200 EN344
ELECTRICAL
Breakdown Voltage Kv/mm ≥9 ≥9 ≥9 6.0 6.0 6.0 6.0 6.0 ASTM D149
Volume Impedance ohm-cm 4x1012 5x1012 3.6x1013 1.1X1014 1.1X1014 ≥6.5X1010 ≥6.5x1010 6.2X1015 ASTM D257
Dielectric Constant 1MHz 5.27 5.2 6 6.8 6.6 6.5 6.8 5.5 ASTM D150
Flame Rating --- V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0 UL 94
THERMAL
Thermal Conductivity W/m.k 1.0  1.5  2.0  3.0  4.5  6.0  7.5  1.1  ASTM D5470




Note: "D" suffix: one side tacky and non-tacky on the other side
      "A1" suffix: Additional adhesive on one side, "A2" suffix: Additional adhesive on both sides
      "M" suffix: Fiberglass reinforcement in the middle layer for all the size if required
      "F" suffix: Fiberglass reinforcement on top or bottom layer
      Standard sheet: 200x400mm,300x300mm,Custom configuration Available
