Features:
1.2 W/mk Thermal Conductivity
High conformability and cost effective
Double-sided, pressure sensitive adhesive tape
Applications:
Between heat-generation component and heatsink
Mount heat sink/spreader onto drive process/power converter
In all applications where a metal housing is used as heatsink without screw
| TYPICAL PROPERTIES OF TCT120 | ||
| PROPERTY | METRIC VALUE | TEST METHOD |
| Color | White | Visual |
| Thickness (mm) | 0.15; 0.20; 0.25;0.50 | ---- |
| Adhesive Type | Acrylic Polymer | ---- |
| Carrier | w or w/o Fiberglass | ---- |
| Hardness (Shore A) | 40 | ASTM D2240 |
| Density (g/cm2) | 1.3 | ASTM D792 |
| Tensile Strength (lbs/in ) | 180 | ASTM E1269 |
| Continuous Use Temp (℃) | -40 ~ 150(short term) 90(long term) | EN344 |
| ELECTRICAL | ||
| Dielectric Breakdown Voltage (Vac) | ≥3 kVac/m | ASTM D149 |
| Dielectric Constant (1MHz) | 5 | ASTM D150 |
| Volume Impedance (ohm-cm) | 1 x1013 | ASTM D257 |
| THERMAL | ||
| Thermal Conductivity (W/m.k) | 1.2 | ASTM D5470 |
Check List of Reliability Test Report for TCT120 is available after your request
Below info will be helpful for your right application
How to transfer or dissipate the heat from the heat-generating components to heat sinks?
How To Select the Right Thermal Interface Materials for your new application?
Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

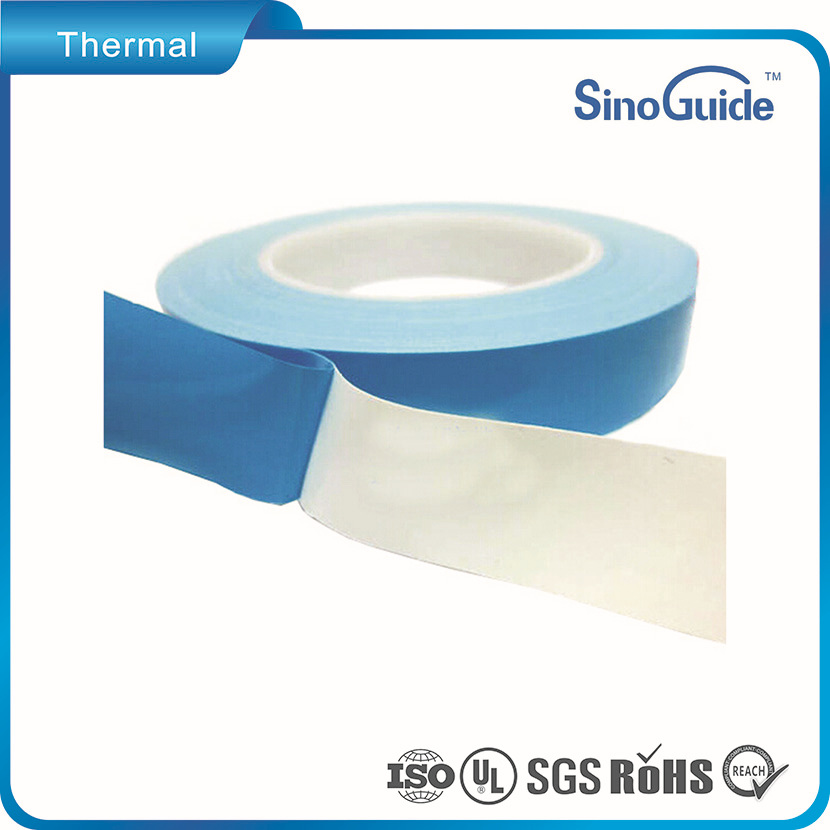

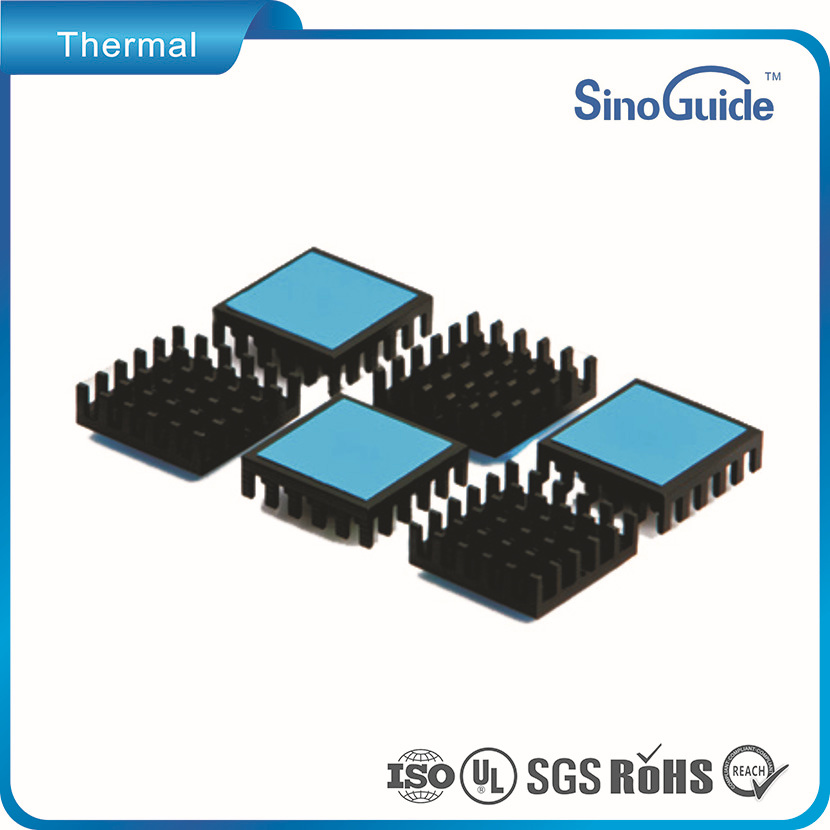

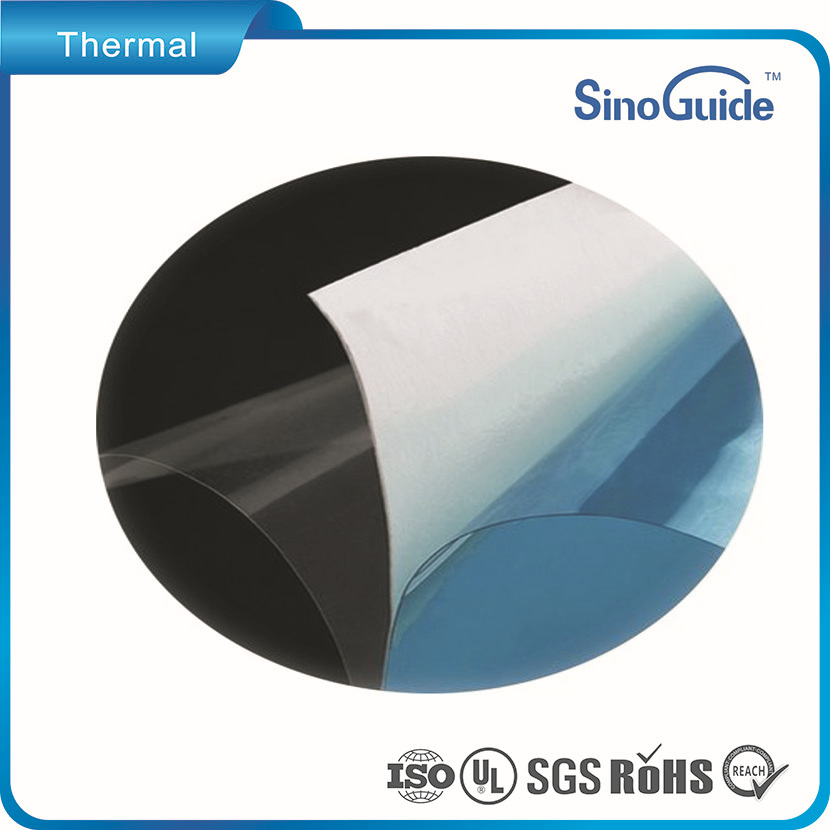

Product Photos:
