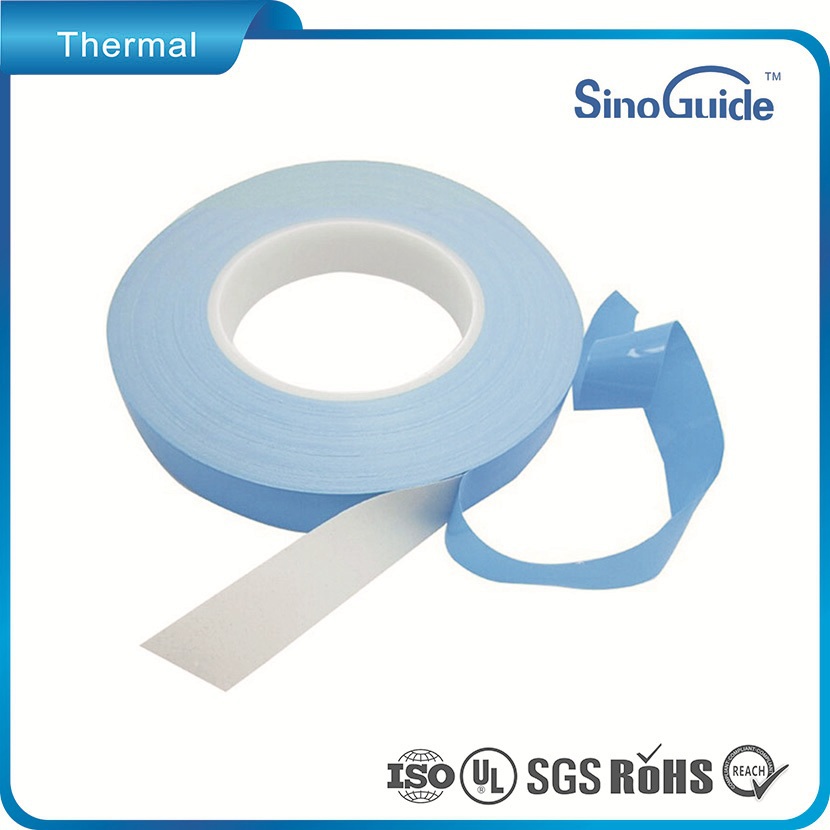

Features and Benefits
-All of our Thermal Conductive Adhesive Tape is used for bonding heat disspation fins to microprocessor or power consumption semiconductors, utlimate bonding strength with lower thermal resistance without mechanical fixing for assembly
-Double-sided, pressure sensitive adhesive tape
-Electrically insulating
Typical Application:
- Mount heat sink/spreader onto drive process(BGA)/power converter or Motor control PCB
- In all applications where a metal/plastic housing is used as heatsink without screw or clip mounting and hot-melt glue
Typical Properties of Thermal Conductive Adhesive Tape | ||||||||
Properties | Units | TCT120 | TCT120FG | Test Method | ||||
Color | --- | White | White | Visual | ||||
Reinforcement Carrier | --- | No | Fiberglass | --- | ||||
Thickness Range | mm | 0.15 | 0.25 | 0.15 | 0.2 | 0.25 | 0.3 | --- |
natural tacky (1- or 2-sided) | --- | 2 | 2 | 2 | 2 | 2 | 2 | --- |
Continuous Use Temp | ℃ | -20 to 100 | EN344 | |||||
ELECTRICAL | ||||||||
Breakdown Voltage | Kv/mm | ≥2 | ≥4 | ≥2 | ≥2.5 | ≥3.5 | ≥4 | ASTM D149 |
Peel Adhesion | N/25mm | 9.5 | 11 | 10.3 | 11.8 | 14.5 | 15.8 | PSTC-7 |
Holding Adhesion | N/25mm/25℃ | 10.2 | 11.8 | 12.2 | 14.5 | 16.8 | 18 | PSTC-7 |
THERMAL | ||||||||
Thermal Conductivity | W/m.k | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
ASTM D5470 |
Company Information:
Our Advantage:
FAQ:
1: Can I get free sample?
Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however,
if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample.
For the new customer, samples fee will be deducted from the initial bulk order.
2:Does SinoGuide accept OEM or Customized production?
Yes, SinoGuide is capable in developing products according to your requirements; quotation will be
available within 24 hours after getting all the details of desired products.
3: How to customized a sample?
If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.
4: How to ship the order?
SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account,
we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.
5:Is there promotion price for big buyer?
Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you
to start our business there. Long term cooperation buyer will have better prices.
Main Industry Application
Customer Help

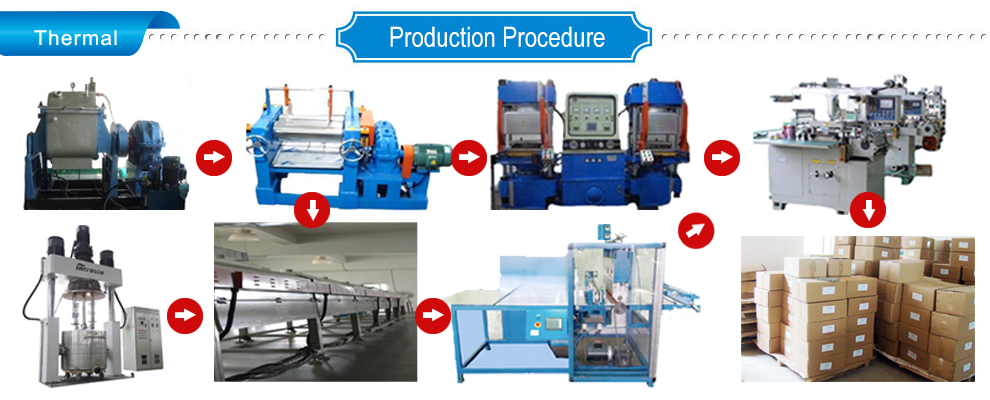

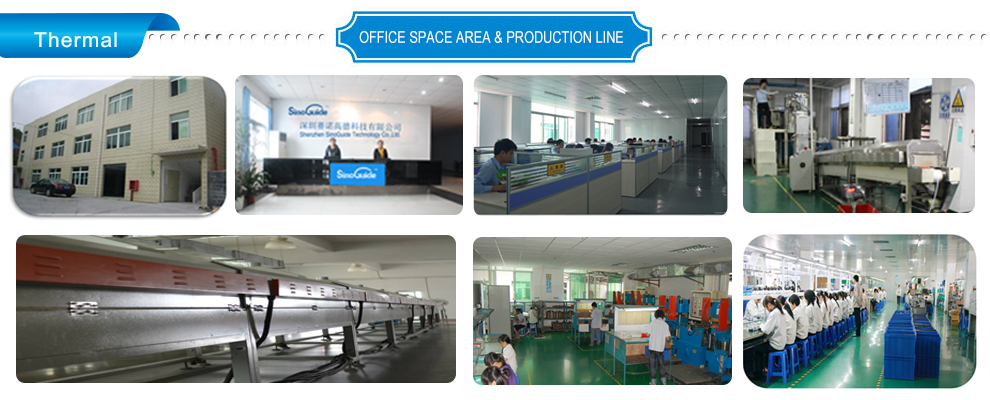

Production Line
